Final cleaning of small gold concentrate volumes.

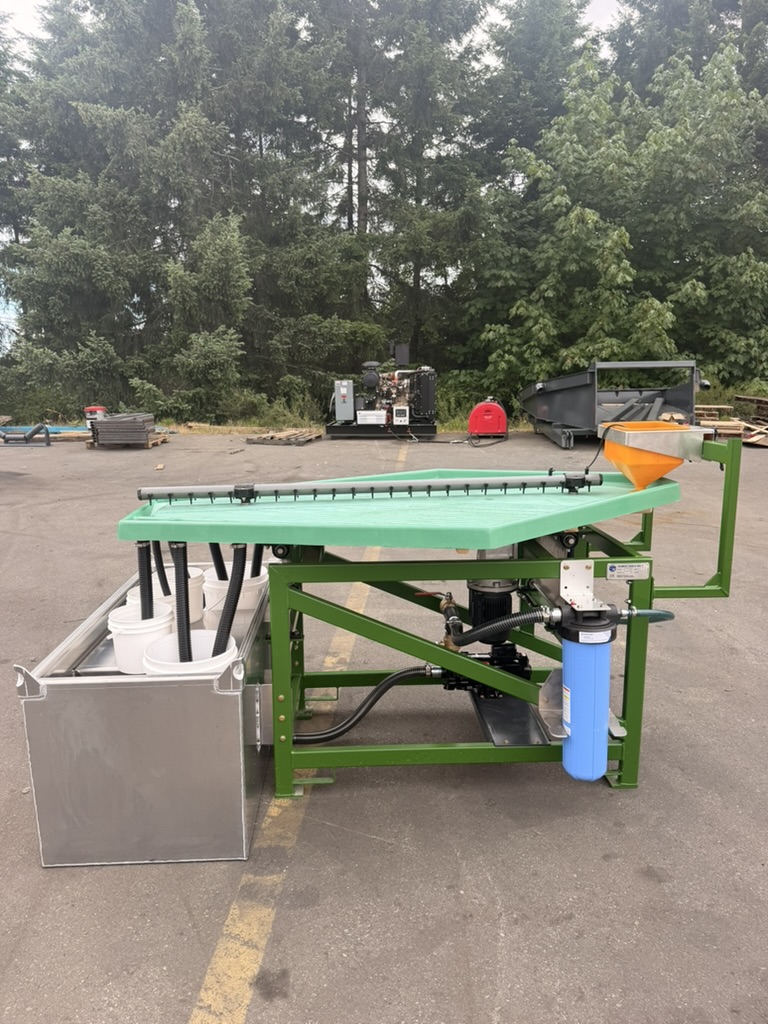

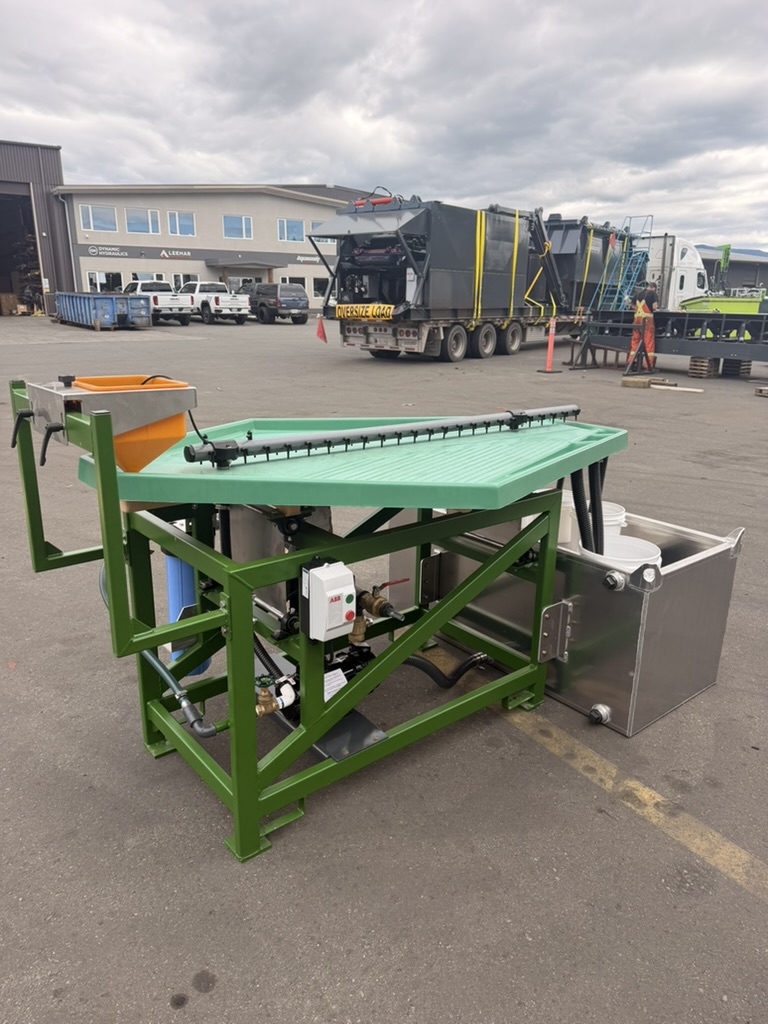

The GT-250 Shaking Table Feeder System is built for final cleaning of small volumes of hard rock or alluvial gold concentrate. An integral feed hopper distributes material to the Gemini shaking table, while the built-in tank, pump and filtration system recirculate water for stand-alone operation without a permanent fresh water source.
-1 MM
Feed Classification
Built for controlled final concentrate cleanup.
Gemini GT-250 Shaking Table
- Original Gemini GT-250 shaking table
- Built in Australia by Mineral Technologies
- Designed for final cleaning of classified gold concentrate
Integrated Feed Hopper
- Receives small volumes of gold concentrate
- Distributes material to the shaking table
- Supports controlled feeding during final cleanup
Separate Concentrate Streams
- Gold concentrate, middlings and tailings collect in separate containers
- Supports production of sellable or smeltable grade gold concentrate
Built-In Water Recirculation
- Integral tank system supports stand-alone operation
- Centrifugal pump recirculates clean water to the table spray bars

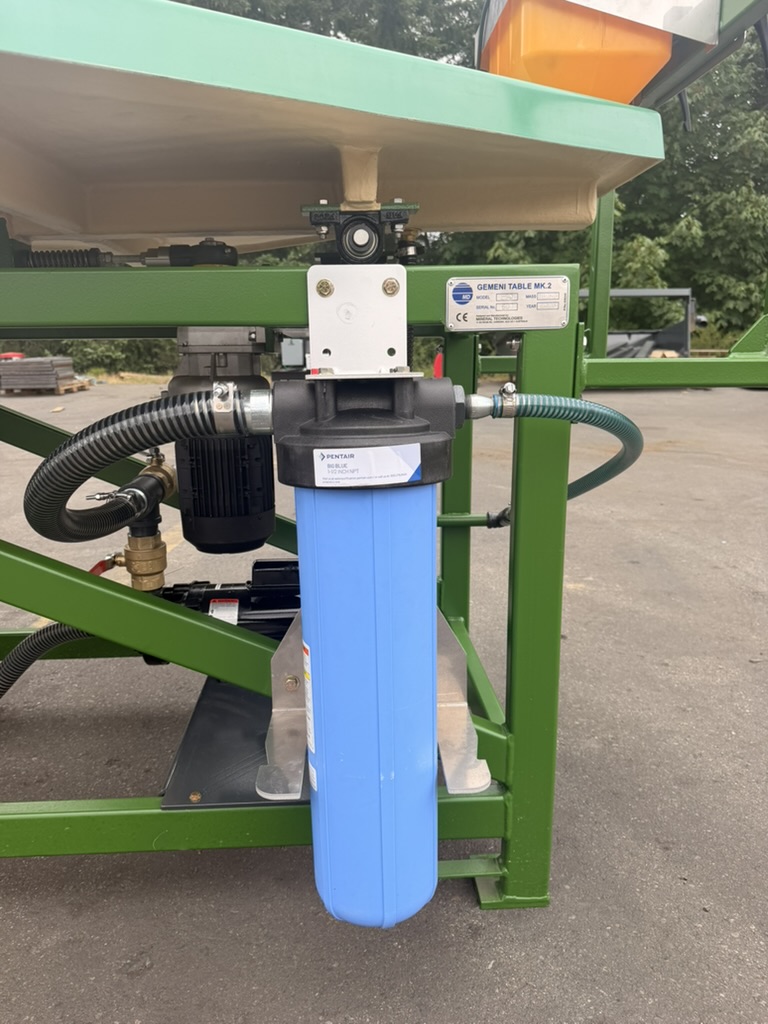

- Cartridge filtration system cleans recirculated water
- Does not require a permanent fresh water source
Talk to Macon about the GT-250.
Tell us about your concentrate volume, material classification and current cleanup process. A Macon representative can follow up to help determine whether the GT-250 fits your final recovery setup.
