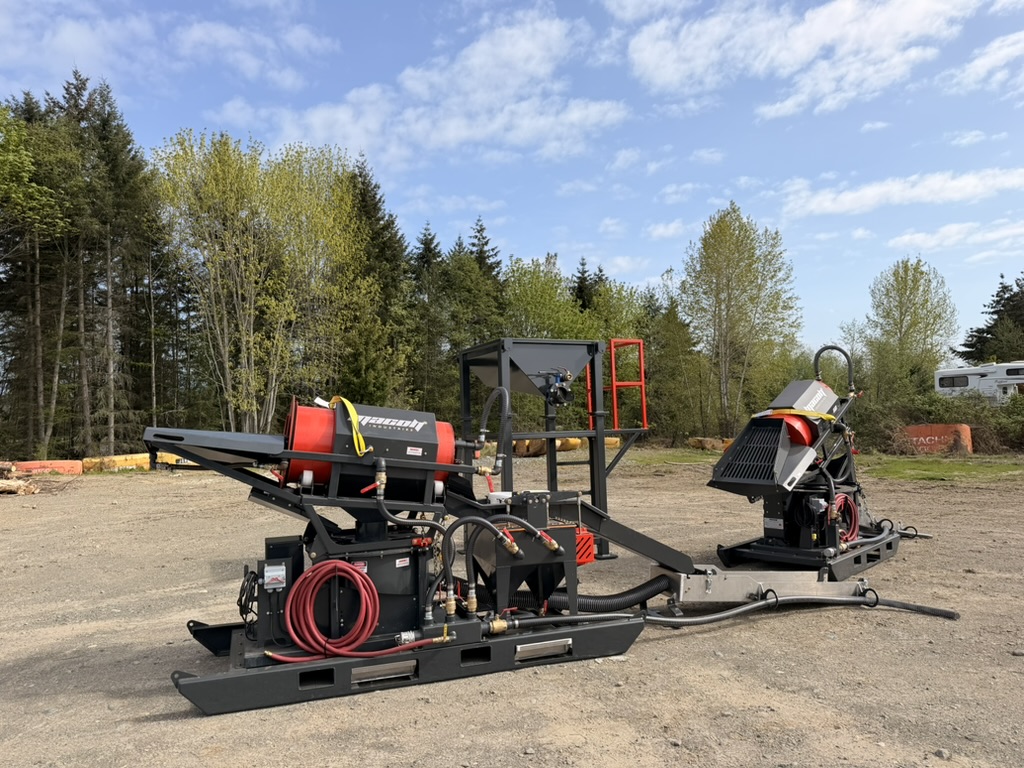

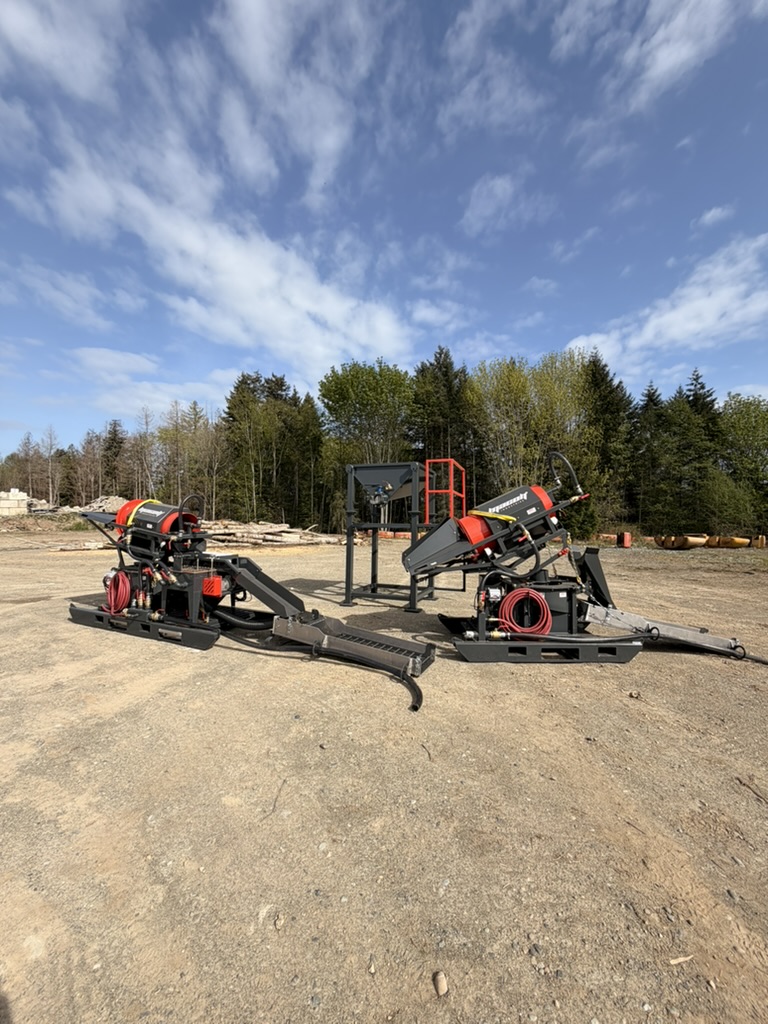

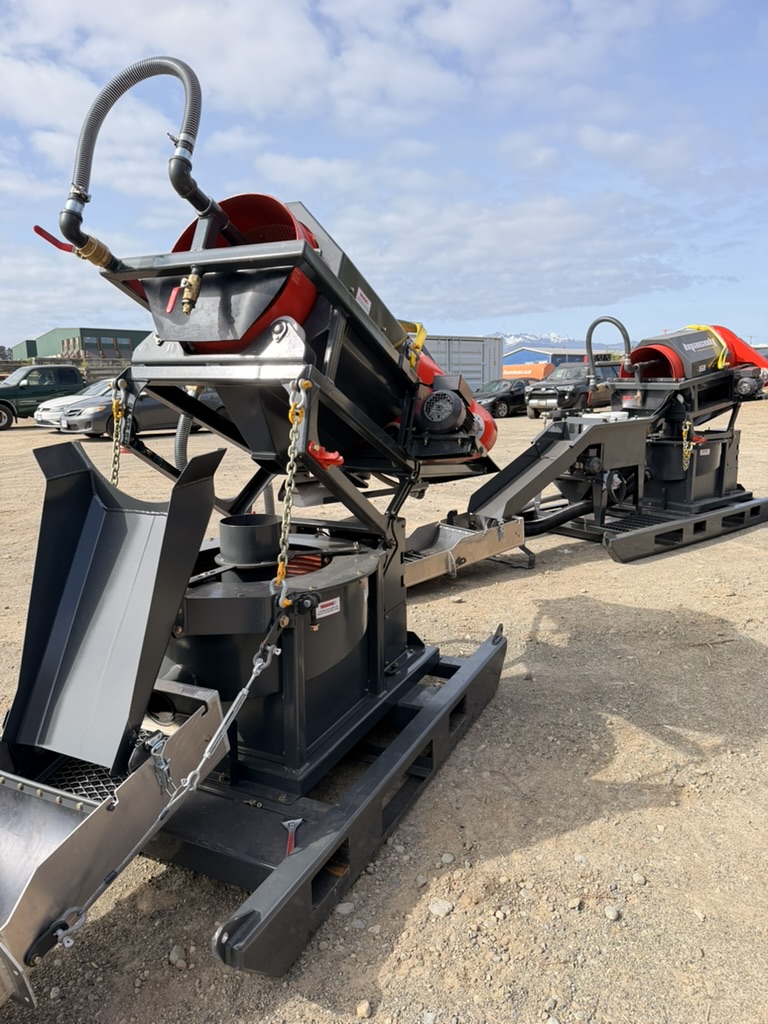

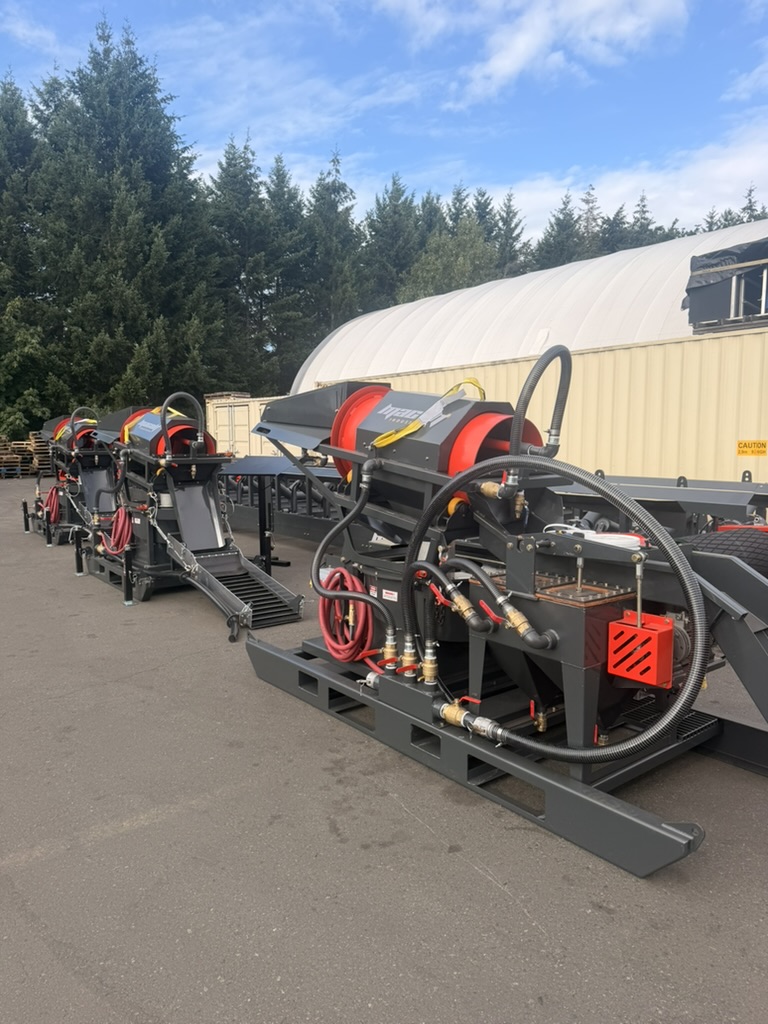

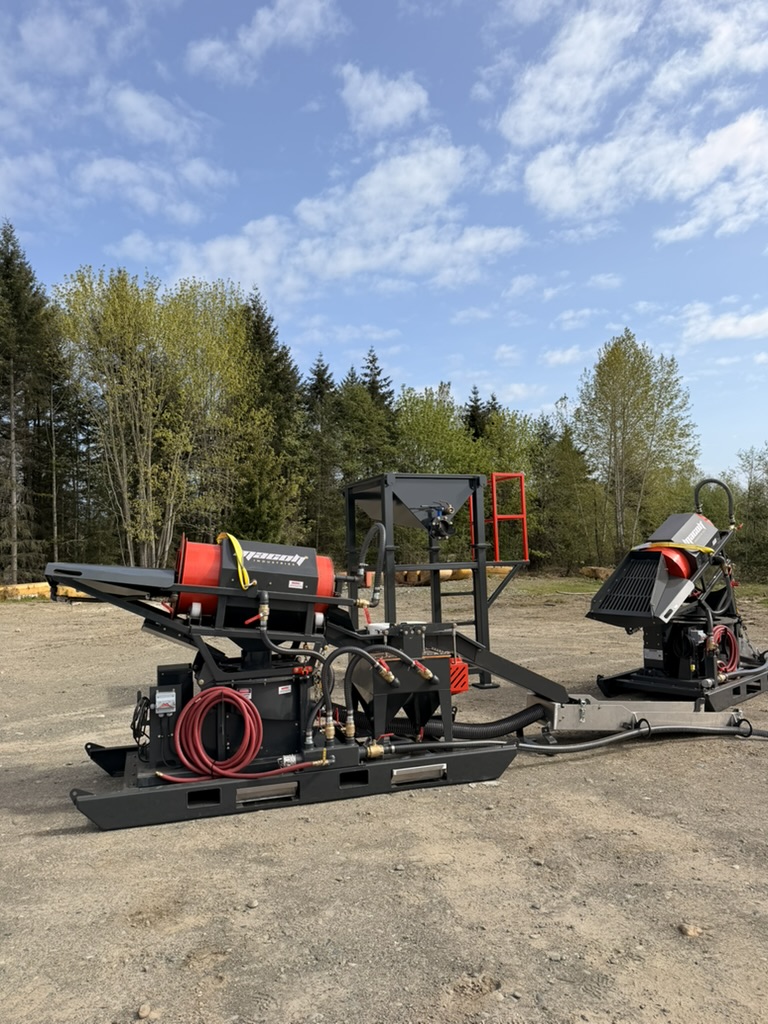

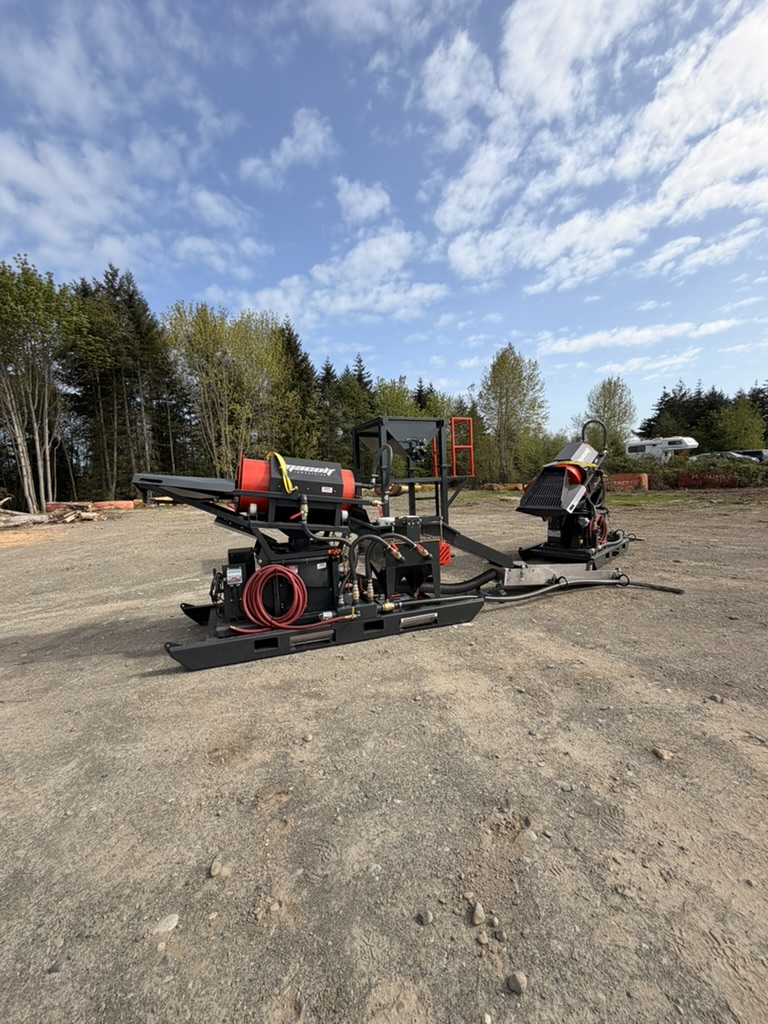

T-150

Reduce concentrate volume fast.

The T-150 Cleanup Plant is built for small testing through larger concentrate cleanup. It reduces large volumes of concentrate to a manageable amount in minutes, helping prepare material for further screening and tabling.

2,000 LBS
Concentrate in 30–60 min
~20 LB
Reduced Volume
50 GPM
Water Requirement
2 kW
Power Requirement
Download specs sheet

See how the T-150 prepares concentrate.

Trommel + Spray System

  • 20" trommel with replaceable wire mesh
  • UHMW drum rollers
  • Built-in spray bar for hopper and trommel

Concentrate Recovery

  • 24" Knudson bowl concentrator
  • Fine gold recovery by Knudson bowl
  • Coarse gold recovery by sluice or jig

Compact Setup

  • Compact for overseas shipping
  • 2,300 lb shipping weight
  • 97" × 84" × 50" shipping dimensions

Concentrate Reduction

  • Reduces 2,000 lbs of sluice concentrate to approximately 20 lbs
  • Reduced concentrate then requires further screening and tabling
T-150 technical drawingT-150 3D rendering
T-150
T-150
T-150
T-150
T-150
T-150
T-150
T-150
T-150
T-150
T-150
T-150
T-150
T-150

How concentrate moves through cleanup.

How concentrate moves through cleanup.
Build the T-150 around the way your site runs.
01

Jig for Extra Coarse Gold Recovery

  • Optional recovery support for operations working with extra coarse gold.
Jig for Extra Coarse Gold Recovery
02

Compatible Cleanup Bin + Stand

  • Add a compatible bin and stand setup for feeding concentrate into the T-150.
Compatible Cleanup Bin + Stand
Support that keeps you moving.
From manuals and spare parts to commissioning and field support, Macon stays within reach after delivery. Optional spare parts packages help you prepare for common wear and planned maintenance, with Macon’s parts, sales and support teams available when you need help.
Explore Parts & Support

Create the right setup for your operation.

Tell us about your ground, production goals and site requirements. We’ll help determine how the T-150 should be configured for the job.
