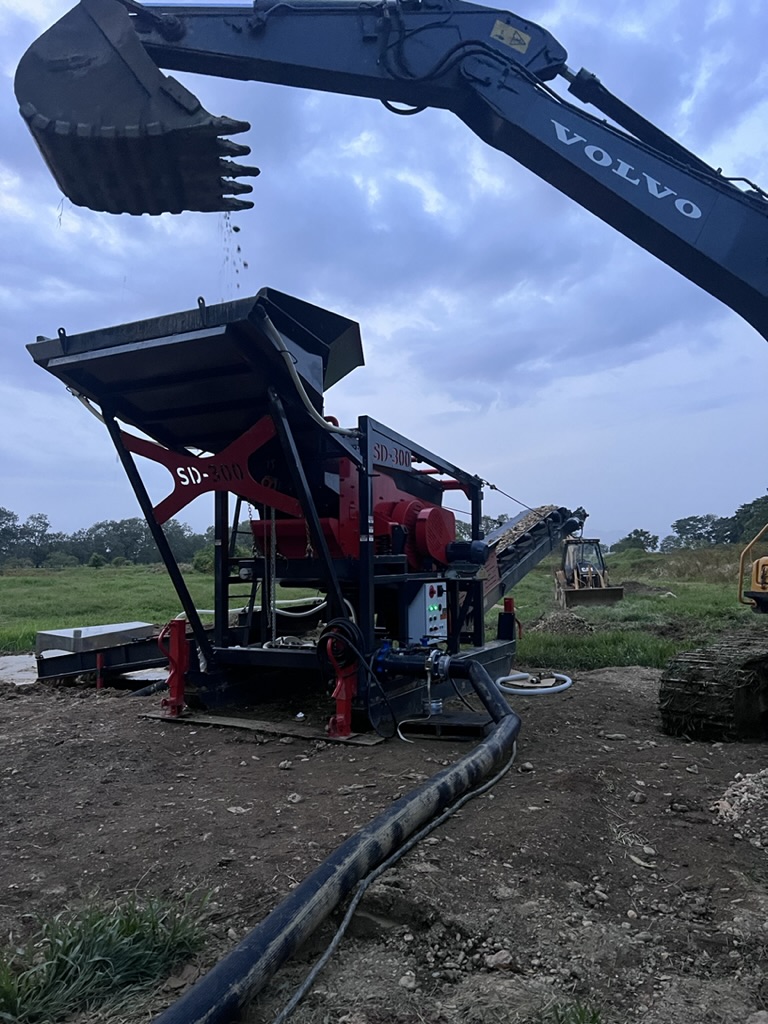

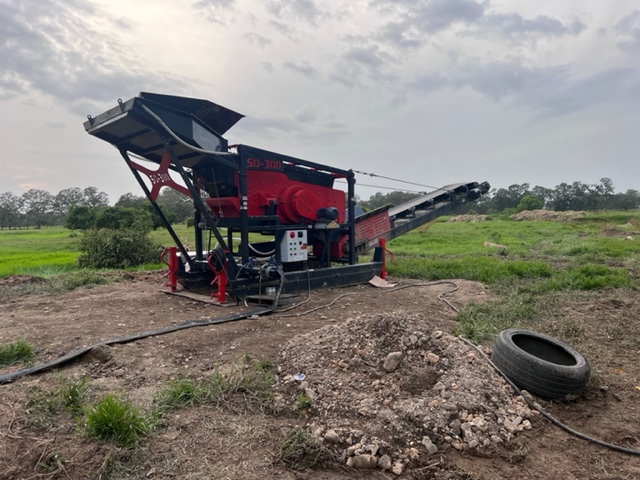

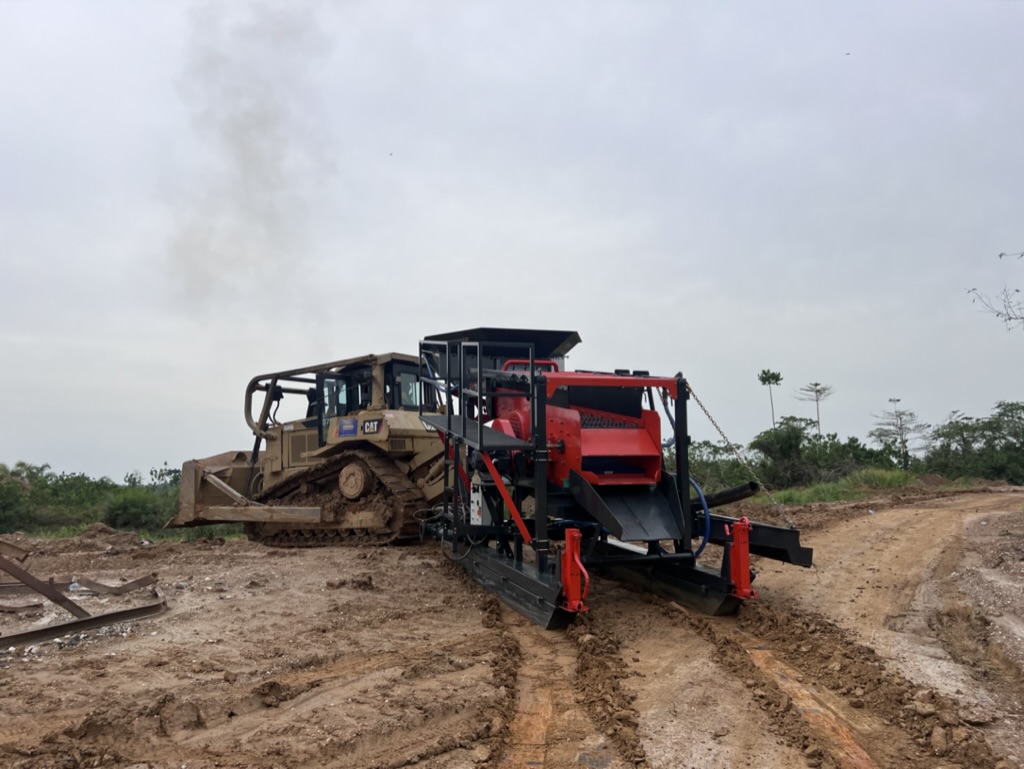

SD-300

Big capability in a smaller footprint.

The SD-300 is a compact wash plant built for bulk testing and smaller production operations. Process 50 to 75 tons per hour with a portable, container-ready design made for getting into the field faster.

50-75 TPH

Processing Capacity

12 inches

Max Feed Size

1,100 GPM

Water Requirement

30 kW

Power Requirement

19,000 LB

Equipment Weight

Download specs sheet

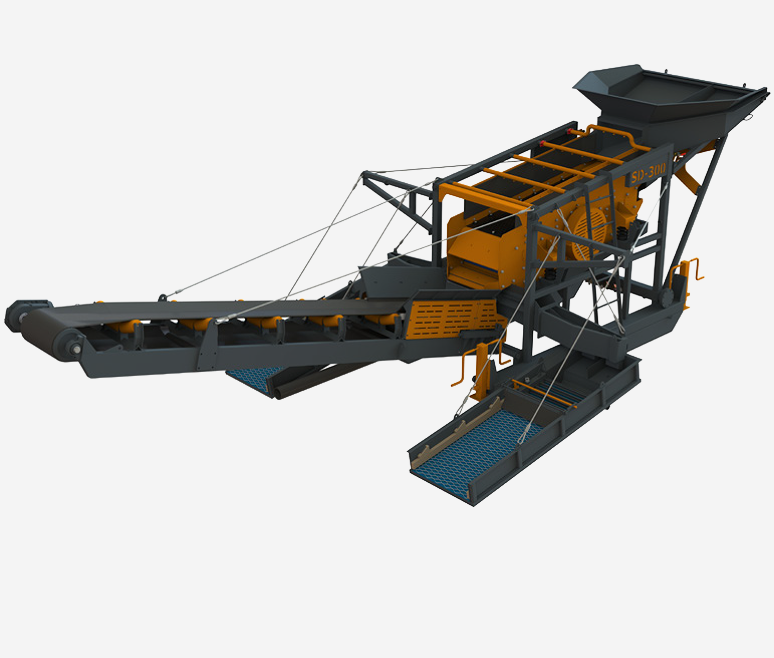

See what the SD-300 can handle.

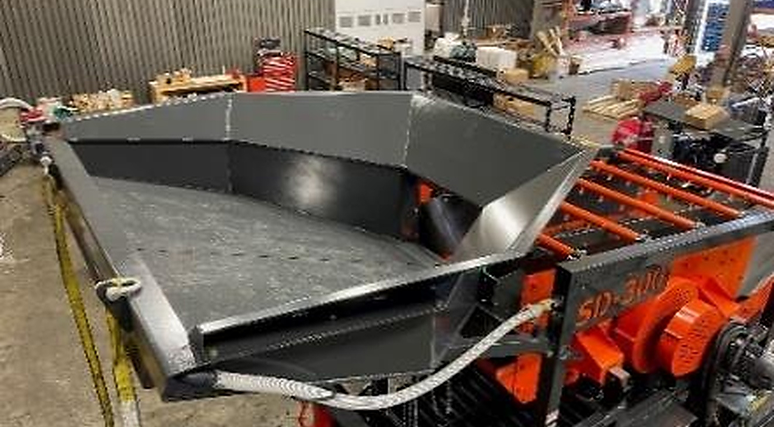

Reinforced Feed Hopper c/w built-in Spray Bar

Designed for Excavator Feed, accepting up to 12" feed size
Lined with 1/4" AR plate
Wash water around perimeter of the hopper supplies relatively steady feed to the screen deck
Removable side wings prevent spillage

3' x 8' Inclined Double Screen Deck

10 HP Deck Drive Motor
Project specific aperture and media
Top deck spray bars tiltable, with directional spray nozzles for best washing performance

Efficient Recovery Runs

Primary run in screen underpan
Lockable for authorized access
Proprietary feed distributor ensures even material distribution onto secondary runs

Electrical Control Panel

NEMA4 / IP65 electrical panel
Robust protecting cover
Fully pre-wired
Start/Stop pushbuttons
E-Stop pushbutton
Operating hour meter

Build the SD-300 around the way your site runs.

20' x 24" stacker conveyor with electric motor, guarding & impact bed

1/2" urethane hopper skirting
3/8", 3-ply belt, vulcanized ends
directional plow on return side
5.5hp motor, directly mounted to Dodge gearbox
12" takeup for belt adjustment and tracking

Leveling Jacks

Four total, one at each skid end
Removeable
12,000 lbs capacity, hand-crank
Allows for fast and accurate levelling of the plant

Hydraulic riffles with hoses and filtration system

Hydraulic riffles inject fluidization water into the concentrate bed between riffles to maximize gold recovery rate and prevent packing of the recovery zone with heavy minerals
Proprietary water filtration system eliminates plugging of fluidization water holes

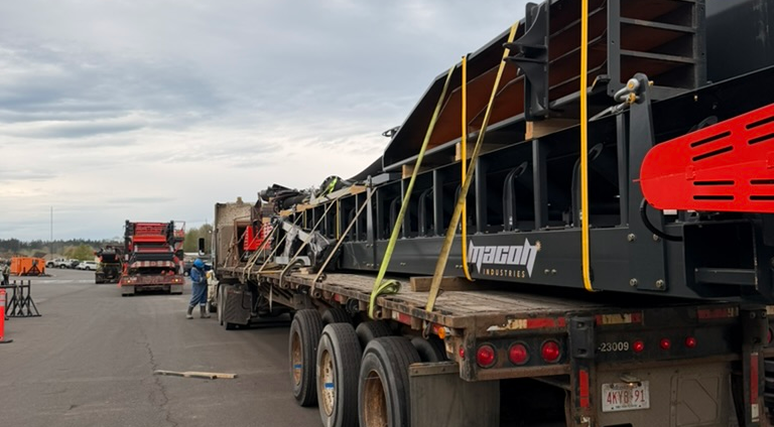

Packing into containers for overseas shipping

SD-300 models are designed to fit into standard shipping containers for secure and cost-effective transportation

30KW Diesel Generator

Kubota Diesel Engine (50 hp) or similarControl panel c/w oil pressure, coolant temperature gauges and low oil pressure / high coolant temperature safety shutoff; 230 liter fuel tank
Skid mounted with roof, lifting lugs, forklift pockets, radiator guard

Compare shaker deck models.

Compact wash plant for serious production.

Ideal For: Bulk testing or medium operations.
Processing Capacity: 50-75 TPH
Max Feed Size: 12 inches
Water Requirement: 1,100 GPM
Power Requirement: 30 kW
Equipment Weight: 19,000 LB

Currently viewing

SD-350

A lighter, portable deck with two-stage gold recovery.

Ideal For: Bulk testing or medium operations.
Processing Capacity: 100-200 TPH
Max Feed Size: XX inches
Water Requirement: XX GPM
Power Requirement: TBD
Equipment Weight: 6 MT

View SD-350

SD-400

Mobile skid design simplifies transport and setup.

Ideal For: Medium to large operations.
Processing Capacity: 100-180 TPH
Max Feed Size: 16 INCHES
Water Requirement: 2,200 GPM
Power Requirement: 70 KW
Equipment Weight: 35,000 LB

View SD-400

SD-500

Built for consistent production with minimal downtime.

Ideal For: Large scale operations.
Processing Capacity: 200-330 TPH
Max Feed Size: 16 inches
Water Requirement: 2,900 GPM
Power Requirement: 100 KW
Equipment Weight: 70,000 LB

View SD-500

SD-600

Macon’s highest-production shaker deck to date.

Ideal For: Large scale operations.
Processing Capacity: 300-450 TPH
Max Feed Size: 24 inches
Water Requirement: 3,600 GPM
Power Requirement: 100 kW
Equipment Weight: 95,000 LB

View SD-600

Support that keeps you moving.

From manuals and spare parts to commissioning and field support, Macon stays within reach after delivery. Optional spare parts packages help you prepare for common wear and planned maintenance, with Macon’s parts, sales and support teams available when you need help.
