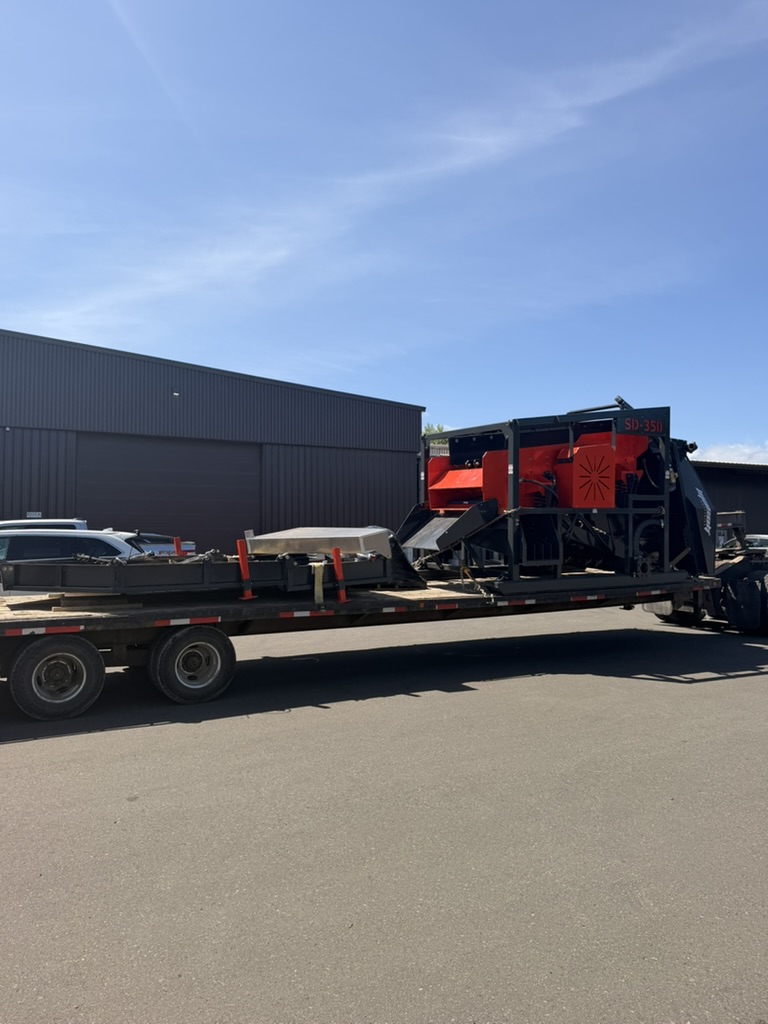

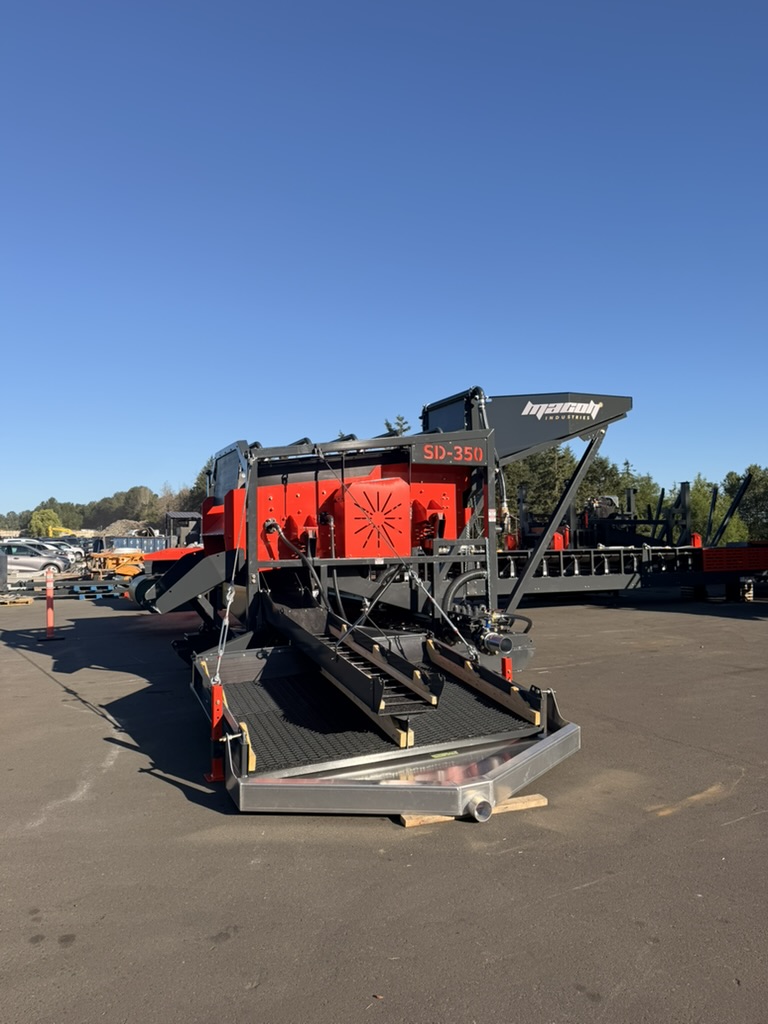

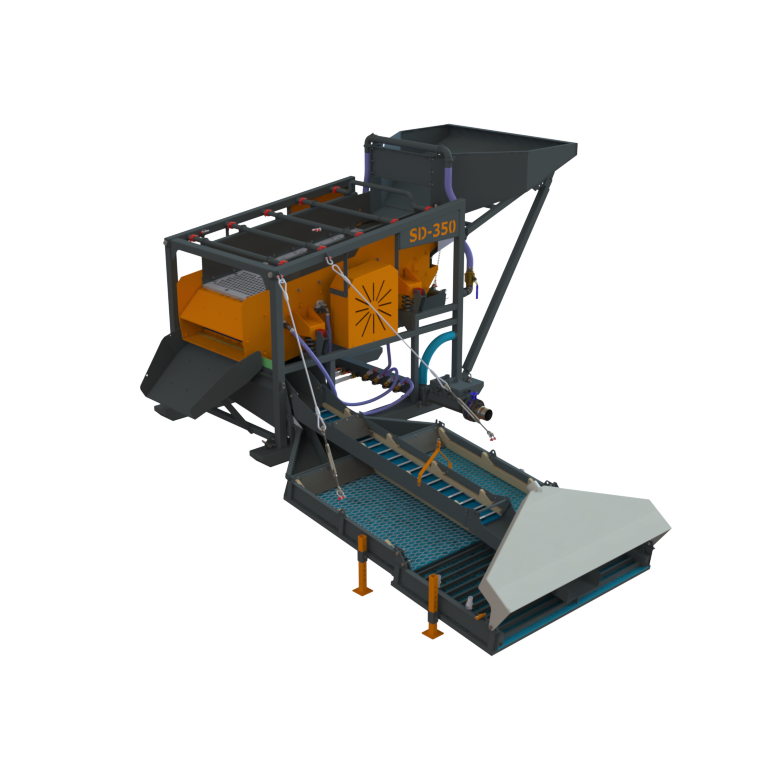

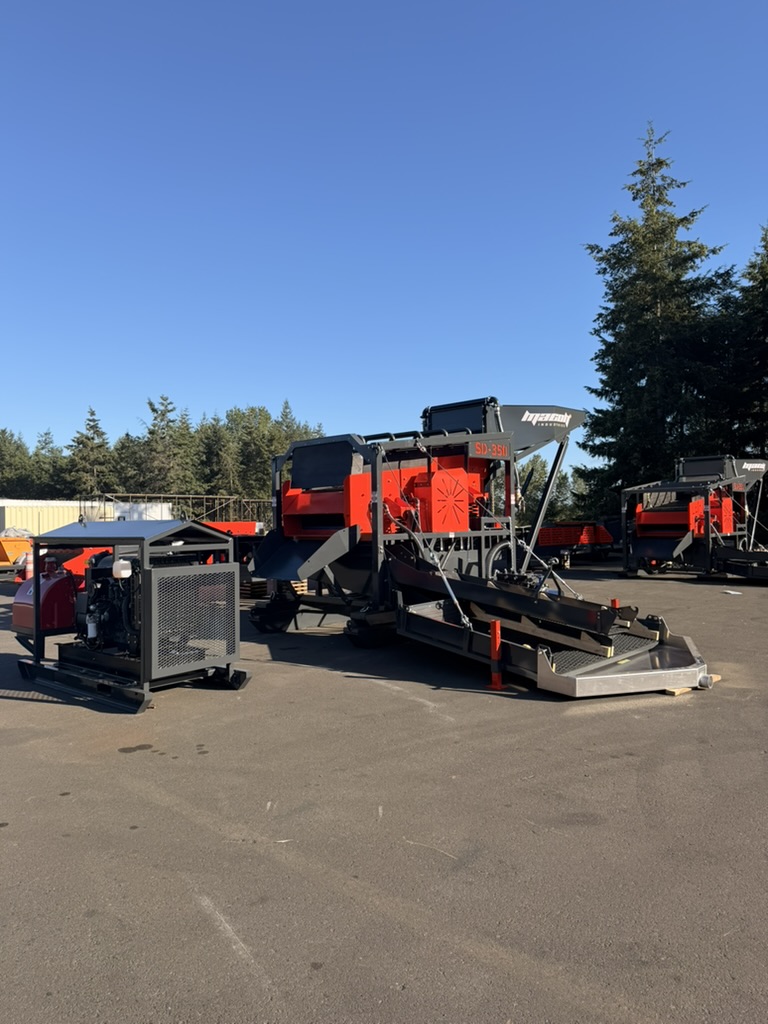

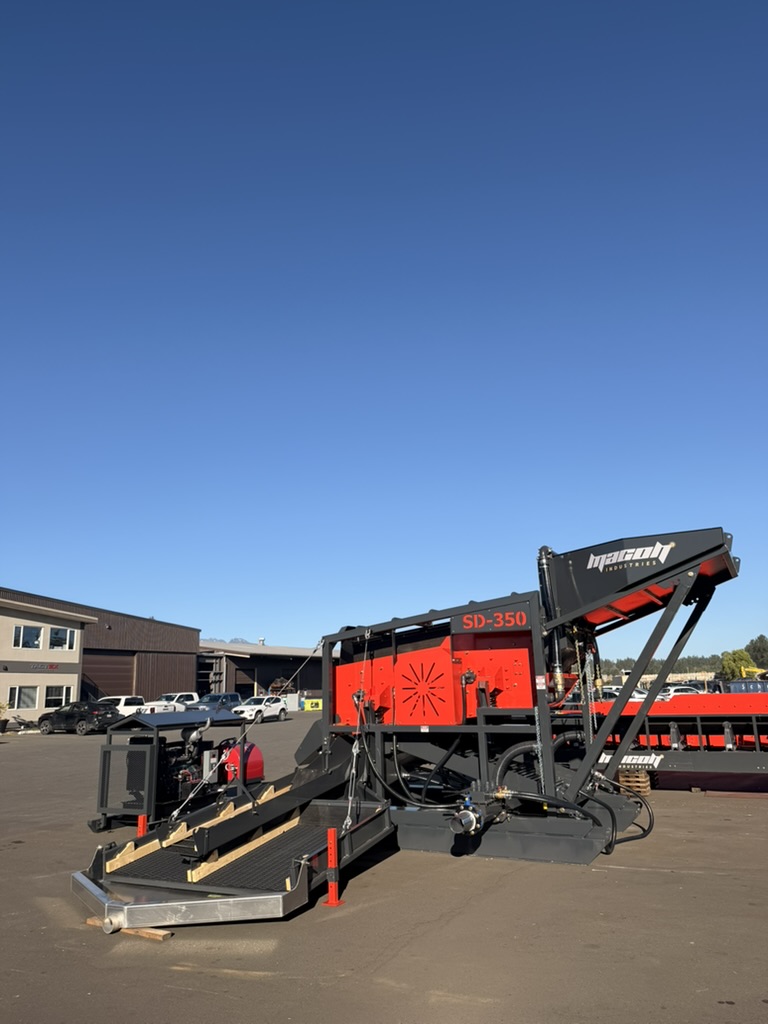

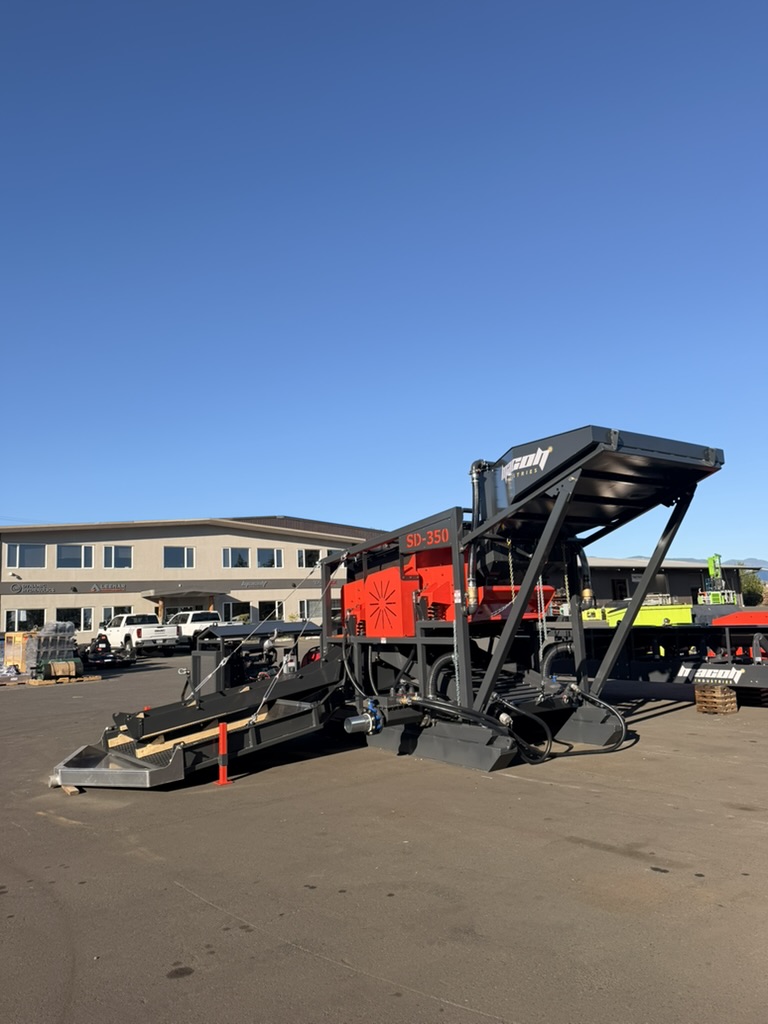

SD-350

High recovery in a lighter, portable design.

The SD-350 is a durable, high-recovery shaker deck built for medium to large mining operations. Its lighter, portable design combines two-stage sluice recovery with reliable performance while remaining easy to operate and maintain.

100-200 TPH

Processing Capacity

XX inches

Max Feed Size

XX GPM

Water Requirement

TBD

Power Requirement

6 MT

Equipment Weight

Download specs sheet

Built for portable, reliable recovery.

Lightweight Reinforced Frame

Bolt-together main frame with reinforced deck mounts
Skids with 400F wear plates and tow lugs
Smaller, lightweight design built for easier portability

Reinforced Feed Hopper

Reinforced hopper body
Adjustable spray bar
Water inlet available on either side with bypass valve

Double Screen Deck

7-degree decline slope
Electric drive with belts, pulley and guarding
Hardox top deck with 1.5" openings
TEMA polyurethane bottom deck with 0.5" openings
Adjustable top-deck spray bars
15 HP deck drive motor

Two-Stage Recovery

Primary sluice run is tiltable and lockable
Primary run configured with angle iron riffles over matting
Main sluice run configured with expanded metal over matting
Two-stage setup designed for coarse and fine gold recovery

Electrical Controls

Robust electrical panel
Start and stop controls

Build the SD-350 around your recovery setup.

Additional Bottom-Deck Spray Bars

Three additional bottom-deck spray bars
High-pressure nozzles

Hydraulic Riffles

Available for the main sluice runs
Available for the primary sluice run
Self-cleaning filter available with the main-run setup

Main Sluice Run Extension

4' long extension
7' wide sluice run

30 kW Diesel Generator

30 kW diesel generator
Fuel tank included

Diesel Water Pump

80 HP diesel 6 × 4 water pump
Skid and fuel tank
Suction line and screen

6" Water Line

300' PVC water line
Compatible couplings

Nugget Run Upgrade

Nugget run upgrade available

Compare shaker deck models.

SD-300

Compact wash plant for serious production.

Ideal For: Bulk testing or medium operations.
Processing Capacity: 50-75 TPH
Max Feed Size: 12 inches
Water Requirement: 1,100 GPM
Power Requirement: 30 kW
Equipment Weight: 19,000 LB

View SD-300

A lighter, portable deck with two-stage gold recovery.

Ideal For: Bulk testing or medium operations.
Processing Capacity: 100-200 TPH
Max Feed Size: XX inches
Water Requirement: XX GPM
Power Requirement: TBD
Equipment Weight: 6 MT

Currently viewing

SD-400

Mobile skid design simplifies transport and setup.

Ideal For: Medium to large operations.
Processing Capacity: 100-180 TPH
Max Feed Size: 16 INCHES
Water Requirement: 2,200 GPM
Power Requirement: 70 KW
Equipment Weight: 35,000 LB

View SD-400

SD-500

Built for consistent production with minimal downtime.

Ideal For: Large scale operations.
Processing Capacity: 200-330 TPH
Max Feed Size: 16 inches
Water Requirement: 2,900 GPM
Power Requirement: 100 KW
Equipment Weight: 70,000 LB

View SD-500

SD-600

Macon’s highest-production shaker deck to date.

Ideal For: Large scale operations.
Processing Capacity: 300-450 TPH
Max Feed Size: 24 inches
Water Requirement: 3,600 GPM
Power Requirement: 100 kW
Equipment Weight: 95,000 LB

View SD-600

Support that keeps you moving.

From manuals and spare parts to commissioning and field support, Macon stays within reach after delivery. Optional spare parts packages help you prepare for common wear and planned maintenance, with Macon’s parts, sales and support teams available when you need help.

Explore Parts & Support

Talk to Macon about the SD-350.

Tell us about your production goals, feed material and site requirements. A Macon representative can follow up to help determine whether the SD-350 is the right fit for your operation.
